Multicolor

Multi Color/material Injection Molding System Solutions

Independent injection units:

Servo hydraulic injection unit series:

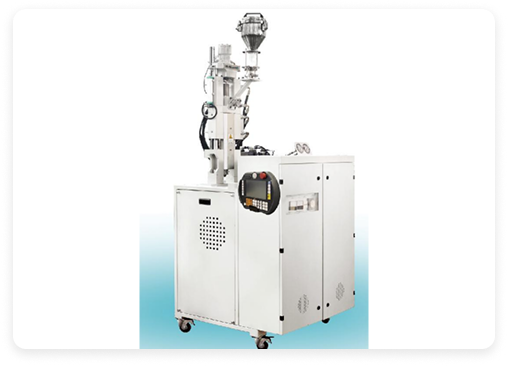

Mv/mh-series multitech small-injection unit is including injection unit and independent hydraulic/ servo-hydraulic and all-electric power system. Also, with portable multitech PLC controller is able to release the boundary of space limitation.
Any injection molding machine can be connected. Customers no longer need to invest two-color or tri-color machine and then realizes multi-material injection molding, optimize production systems and improve equipment utilization.
The equipment is small and exquisite; less occupying space and energy saving. The construction of the injection molding unit is compact and can be installed directly onto the mould, either horizontally or vertically.

Easy disassembly: after simple training, customer will be able to disassemble and reinstall on other press.
Injection unit has an excellent flexibility to install, injection molding machine match in/out for mold can have more freedom and then the mold structure can be simplified.
The connection port of the control unit and main i.m.m. The current input/output electronic contact.
It is simple can choose a smaller volume of plasticizer to achieve micro-injection.

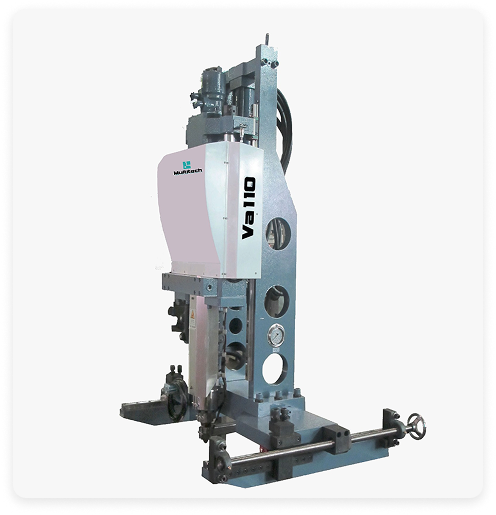

VA Series Multitech small-injection unit includes an injection unit with an independent hydraulic, servo-hydraulic, or all-electric power system. With a portable Multitech PLC controller, it removes space limitations.
Can be connected to any injection molding machine, eliminating the need to invest in two-color or tri-color machines. It enables multi-material injection molding, optimizes production systems, and improves equipment utilization.
The deputy injection unit is installed vertically on the fixed platen of the injection molding machine to save floor space.
Easy to disassemble. After simple training, customers can disassemble and reinstall the unit on different machines.
The deputy injection unit is available in various specifications to meet customers' requirements to the greatest extent.

The injection unit, hydraulic and electric control unit of this deputy injection unit in this series integrated together can provide a simple and reasonable piping layout and structure.
Any injection molding machine can be connected. Customers no longer need to invest two-color or tri-color machine and then realizes multi-material injection molding, optimize production systems and improve equipment utilization.
Easy disassembly. After simple training, customer will be able to disassemble and reinstall on any machines.

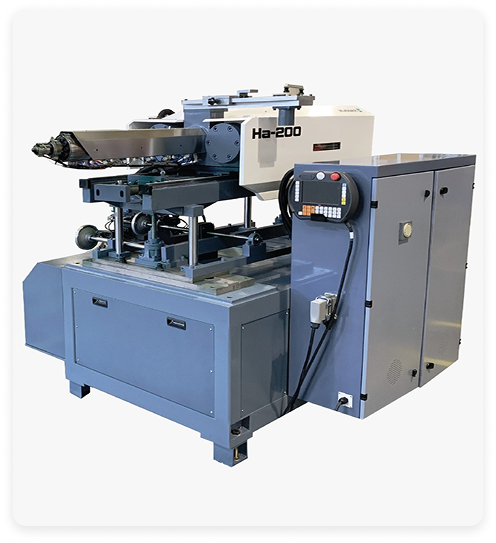

This deputy injection unit is installed directly onto the side of the injection molding machine horizontally. Since the height is quite low, it is not limited due to ceiling height restrictions.
This deputy injection unit have various specifications can be chosen and can provide a relatively large injection volume, greast extent to meet customers requirements.

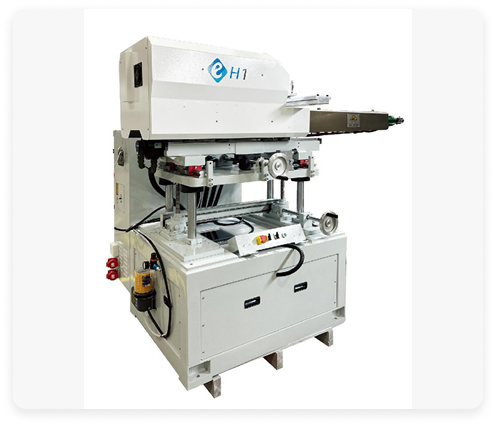

Electric injection unit series:

Built-in dedicated automatic lubrication for ball screw, reduces wear, extends service life, simplifies maintenance, and boosts stability.
Direct-acting load cell delivers accurate real-time load monitoring, ensures stable process control, consistent molding and high product precision.
Spring-loaded mechanism for maintaining nozzle contact pressure stably and continuously when motor stops, prevents material leakage and ensures reliable injection.
All- Electric injection unit are following Euromap and CE requirement.

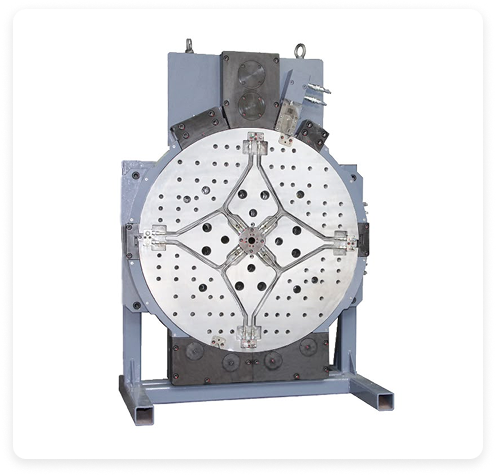

Independent turn (rotary) table:

Precision servo motor-driven, fast and smooth rotation, the stop position is accurate
Lock pin equipment
High efficiency gear transmission structure
Self-lubricating wear-resistant surface with high wear-resistant film support, minimal friction and oil less
Simultaneous water transport device, can choose water, air signal circuit
The chrome-plate surface will be rust-proof, beautiful and durable.
The special design turn table supporting structure effectively prevents the drooping forward of the turntable after being installed.
Turn table could be self-controlled or controlled by original machine controller.
Easy installation, low maintenance costs

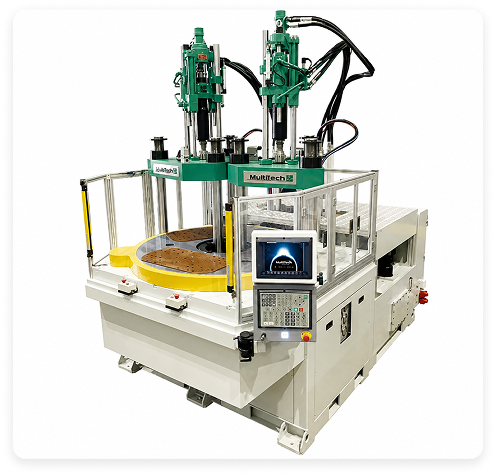

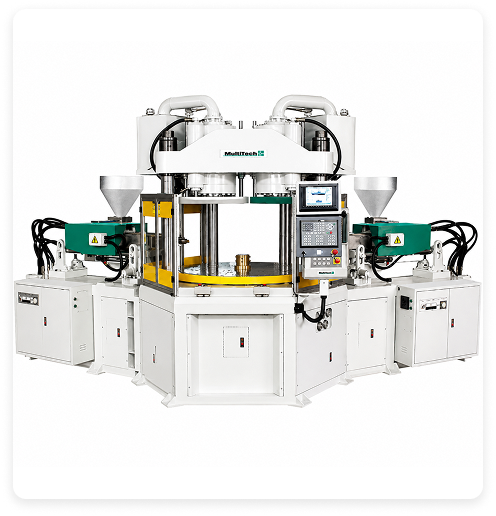

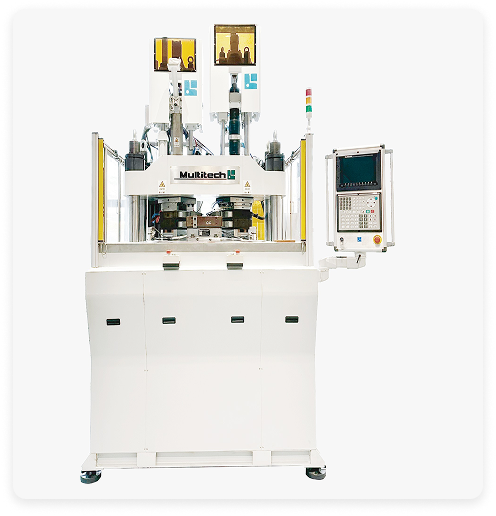

Vertical multi color/material injection molding machine:

Vertical clamping, vertical injection
R2: 2 stations rotary table, R3: 3 stations rotary table
Two separate injection units are given power by independent hydraulic pump. It is stable and reliable. This device can operate two actions simultaneously to shorten cycle time and to increase production.
To choose this multi-functional two color injection molding machine, not only make two-color products be full of variety, but also make lower the cost of mould. In the mean time, it also provides you another new concept of product design.
High efficiency gear rotary table is supported by oilless wear-resisting plate. The synchronously water transport device (can rotary 360°) is included. Table rotates fast and smooth. And the positioning is accurate. Chrome plating table surface will be rust-proof, beautiful and durable.

2 sets of independent injection units can rotate clockwise and anti-clockwise from 0°~120°~240°~0° degree.
Each mold height is not necessary to be the same.
High efficiency gear transmission structure.
Can be used as a single-material machine without risk of flash on the finished part.
Each injection and clamping system is adapted for special material processes (such as vacuuming or multi-stage pressurization) without affecting the other side.
