Zerma Shredders

ZBS (Compact Shredder)

The ZBS series shredders are single shaft shredders with a tangential infeed to eliminate the need for a hydraulic feeding system. The Space saving and maneuverable design combined with the ‘plug and play ‘ controls make this machine very flexible and ready to go in no time. Like its bigger brothers in the ZS series they are equipped with outboard bearings, 310 mm diameter flat E rotors with 600 or 850 mm width driven by an oversized geared motor.

Enquire Now

ZSS / ZPS (General Purpose Shredders)

The ZSS / ZPS shredders are single shaft shredders with a powerful two speed swing ram design eliminating the risk of blocking and wearing out of internal guide rails. The machine is very versatile and can be used for shredding of all kinds of input materials and is well suited for different industries.

Enquire Now

ZIS (Shredders For Voluminous Parts)

The ZIS series shredders are single shaft shredders with a large internal volume. The redesigned hydraulic pusher system creates about 35% more space in the cutting chamber while increasing the power and speed of the ram itself. The machines are equipped with a 457 mm diameter ZERMA E rotor with widths ranging from 1200 to 2000 mm.As on the ZSS machines the rotor is driven via an oversized gearbox.

Enquire Now

ZHS (Shredders)

ZERMA ZHS shredders are single shaft shredders featuring an angled hydraulic ram suitable for a wide range of material shapes and sizes. The ZHS shredders are equipped with a ZERMA E style rotor and knife holder fixing system. The final size of the material is determined by the screen which can easily be changed based on requirements.

Enquire Now

ZHS+ (Shredders)

ZERMA ZHS shredders are single shaft shredders featuring an angled hydraulic ram suitable for a wide range of material shapes and sizes. The ZHS shredders are equipped with a ZERMA E style rotor and knife holder fixing system. The final size of the material is determined by the screen which can easily be changed based on requirements. The ZHS shredder can be tailored to individual requirements, this includes different drive powers, knife configurations as well as discharge options

Enquire Now

ZXS (Heavy Duty Shredders)

The ZXS shredders are single shaft shredders with a powerful two speed swing ram design eliminating the risk of blocking and wear-ing out of internal guide rails. The machine is very versatile and can be used for shredding of all kinds of input materials and is well suited for different industries. The 750 mm diameter rotors ranging from 1500 to 3000 mm width are driven by two oversized gearboxes. The low speed of 45 rpm guarantees a high torque and smooth operation.

Enquire Now

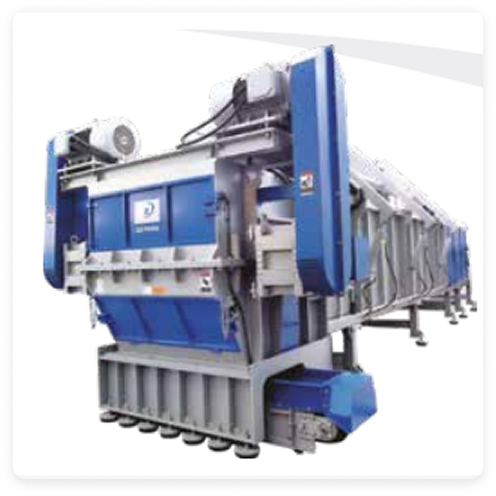

ZRS (Pipe / Profile Shredders)

The ZRS shredder is the world’s first single shaft shredder capable of handling large diameter pipes (up to 1200mm diameter) with-out the need for pre cutting. Since their introduction they have become the per se standard for pipe shredding and are used world-wide by leading pipe manufacturers. More than 200 installations demonstrate our technological leadership in this market and our continuing innovation is based on market demands and customer feedback.

Enquire Now

ZTS/ZTTS (Shredders For Car Tyres)

The ZTS and ZTTS single shaft shredders are specially designed for the processing of complete or pre shred tyres. Both machines machines feature a 750 mm diameter rotor with width options 1500 mm to 3000 mm with oversized outboard bearings and twin gear drives. The tangential infeed ensures optimal feeding of the input materials while eliminating the need for a hydraulic feeding system.

Enquire Now

ZHM (Hammer Mill)

The ZHM series of hammer mills feature heavy duty rotors ranging from 600mm to 800 mm diameter and widths between 800mm and 1200 mm and with V-belt drive. The fixed rotor hammers acting against heavy duty fixed combs plus several rows of pre-breaker combs create high impact powers and hence high throughput rates. Tool changes are fast and easy.

Enquire Now

ZCS (Shredder / Granulator Combination)

The ZCS size reduction system combines a shredder with a granulator in a single space saving system for the processing of production waste. The shredder part is equipped with a 400mm diameter E rotor using ZERMAs proven knife and knife holder design, driven by a high-torque gear drive, which in comparison to a direct drive also handles tougher input materials well. The large material hopper and the powerful horizontal pusher allow processing of voluminous as well as heavier parts.

Enquire Now
