Multitech Product Range

Discover high-performance solutions crafted with precision, innovation, and reliability to meet the demands of modern industries.

V Series Vertical Injection Molding Machine

V series vertical injection molding machines (15T-500T)

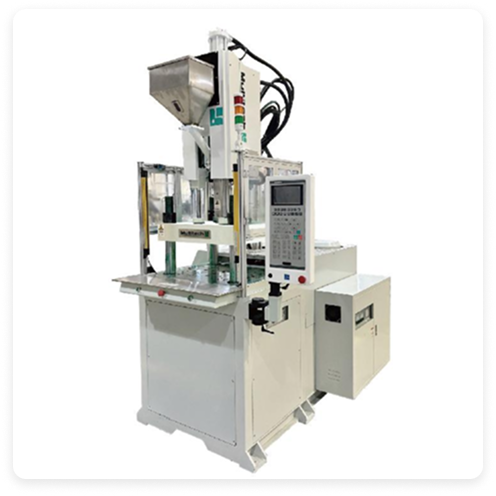

V-SERIES STANDARD

V Series Standard

Vertical clamping, vertical injection, easy to insert 1 upper mold & 1 bottom mold

V-S Series

Vertical clamping, vertical injection, easy to insert
V-s single slide table, 1 upper mold & 1 bottom mold
Single slide Table design, Increase the Production and more Convenience

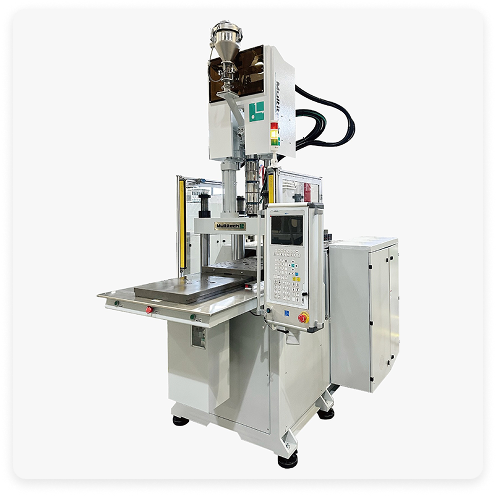

V-C SERIES

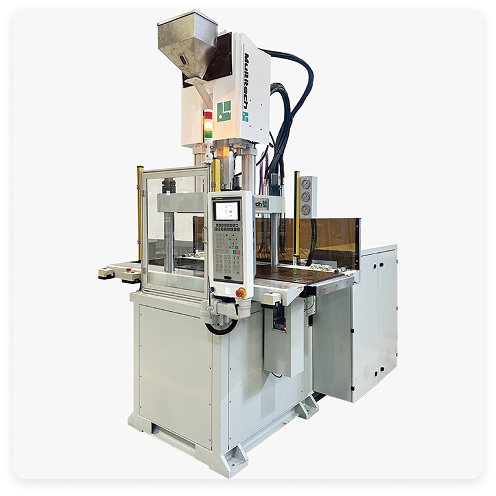

V-SD SERIES

V-SD Series

Vertical clamping, vertical injection, easy to insert
V-sd the integrated double slide table, 1 upper mold & 1 bottom mold
Double slide Table design, Increase the Production and more Convenience

V-R Series

Vertical clamping, vertical injection, easy to insert
R2: 3-Tie Bar and 2-station Rotary Table
R3: 4-Tie Bar and 3-station Rotary Table
Multi-station rotary table
(1 upper mold, 2-4 bottom molds) design, increase production

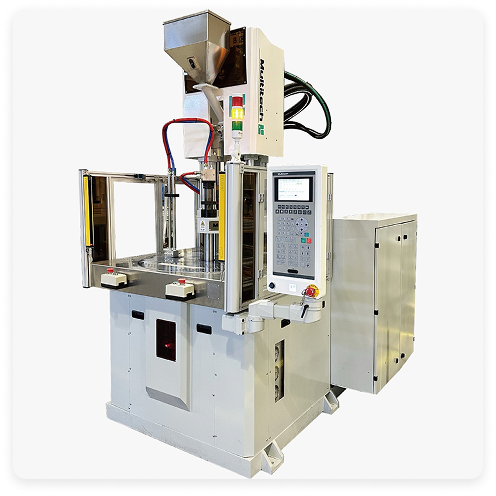

V-R SERIES

Low-platform vl4 series vertical injection molding machines: (150T – 500T)

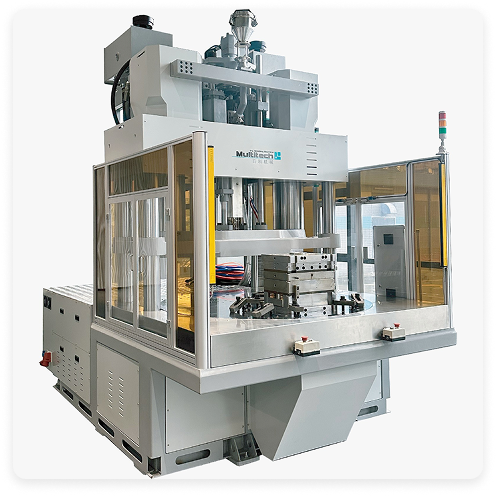

V-LM SERIES

VL4-R Series Rotary Table With Vertical Clamping And Vertical Injection

Rotary Table can be expanded to 3-6 stations
By expanding the outer diameter of rotary table, it can be widely used for larger molds.
Four tie bars design: Enhanced mold accommodation
It offers wider mold open/close stroke, accommodating the trends to use more complex and larger molds, and it’s easier to arrange water/hydraulic pipelines for molds.

VL4-SD Series Double Slide Table With Vertical Clamping And Vertical Injection

Easy for manual insertion and take-out of large inserts
Easy to integrate into automated production lines
Servo-drive sliding table

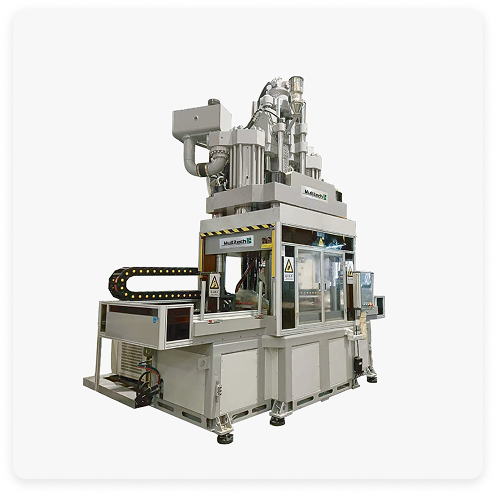

V-LM-D SERIES

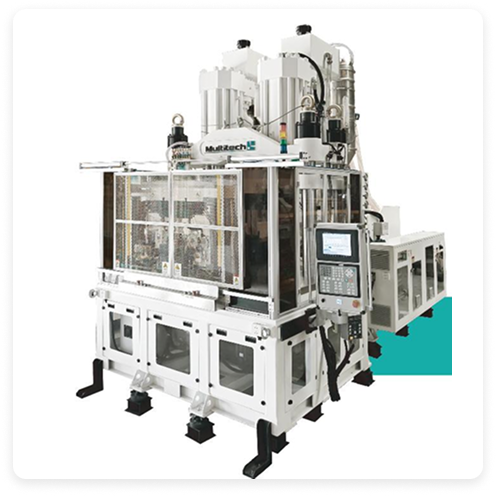

V-LM-R SERIES

VLH Series Four Tie Bars With Vertical Clamping And Horizontal Injection

Vertical Clamping, Horizontal Injection, easy to insert and reducing the machine height
Reduces Operator strain and enhances workflow.
Operators or Automation systems can load/unload inserts /components while the molding process continues, minimizing idle time

C series tie-baeless vertical injection molding machines

C Model

Vertical clamping, horizontal injection, easy to insert
C-Frame tie-barless design, easy to insert long substrates or inserts with long leads

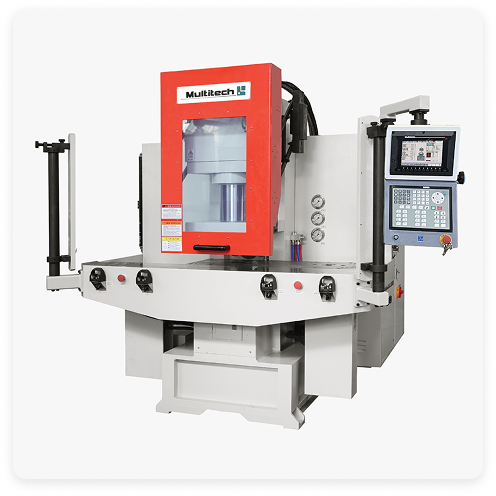

C-FRAME

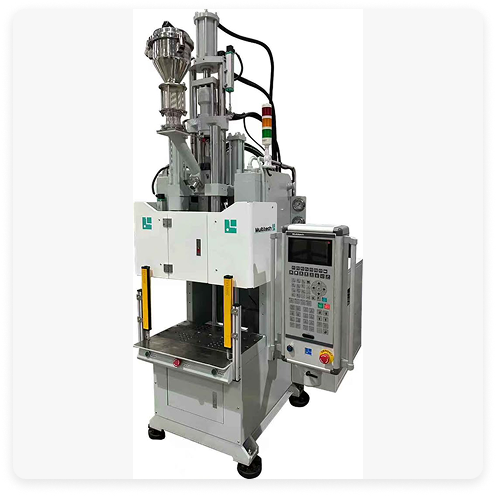

TIE-BAR

VL Model

Vertical clamping, horizontal injection, easy to insert
Tie-barless design, easy to insert long substrates or inserts with long leads

LSR series vertical injection molding machines: (55T – 500T)

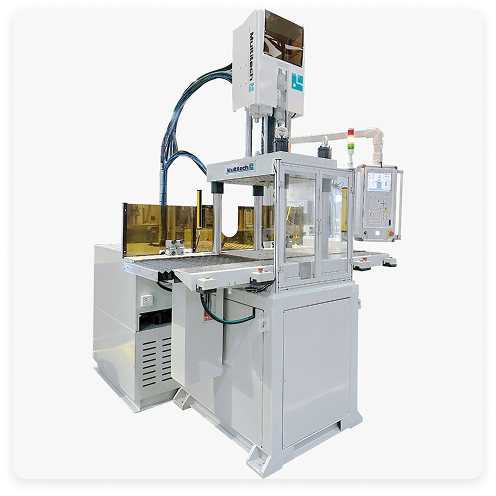

LED SERIES ALWAYS PUMPING MACHINE

LSR Vertical Injection Molding Machines

Multi-stage Mold heater and temperature control.
LSR special pneumatic Shut-off nozzle.
LSR special barrel and screw set.
Insulation plate (standard: within 200 degree c).
Rotary table or double slide tables design (1 Upper mold, 2 Bottom Mold) Easy to insert and Take-out.
Special screw charging and Injection design make screw charging more accurate Optional venting and sequential add on functions to co-operate with complicated LSR Mold.

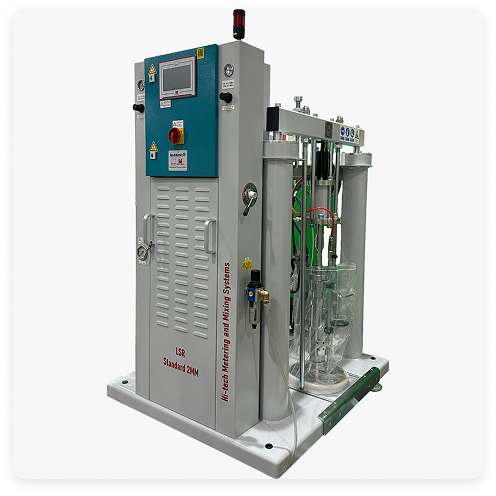

LSR -2 MM Dosing System

2KM Patented Hydraulic drive
Mixing ratio fixed 100 : 100
20L/200L Follower Plates replaceable
Additional color metering

LED C-FRAME SERVO MOTOR SYSTEM

HTV Series Trnasfer vertical Injection Molding Machines

FOR Thermosetting materials available in the transfer BMC/ Solid Silicone / Epoxy, they are applied to diverse products.

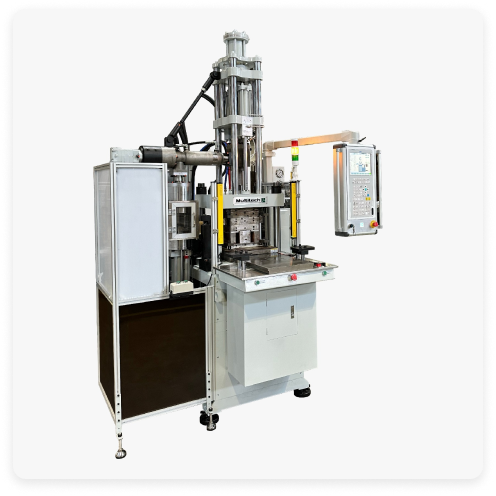

HTV 85

HTV 85

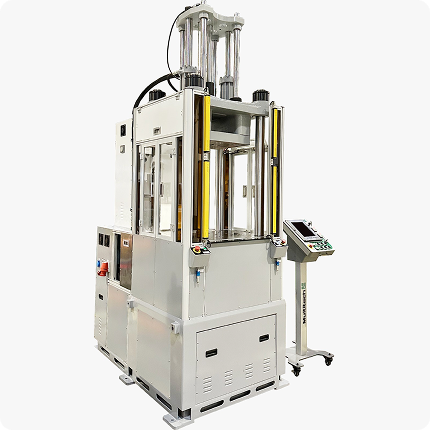

HTV 55

HTV 55
