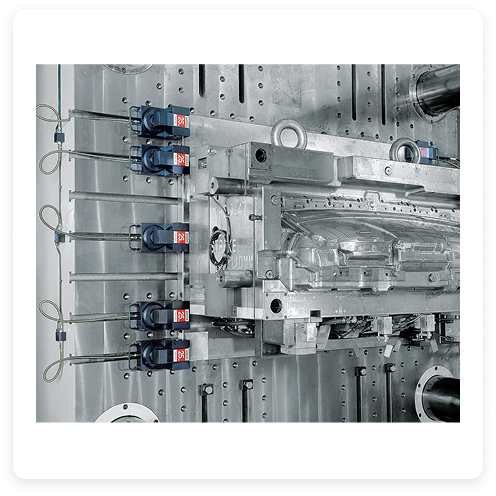

Quick Mold Change System

It is an era for making high frequency mol d change with multiple patterns and smalI quantity. In order to save t ime for the mold change and ensure the safety of the operation, it is just in time to apply quick Mold Change System. Safety function of system

Each hydraulic circuit has the function of checking and avoiding oil leakage.
Each hydraulic circuit has the function of inspecting pressure and can be interlocked with the machine.
It adopts the intersecting direction to clamp the mold.
There are several functions to avoid operation errors.

Enquire Now

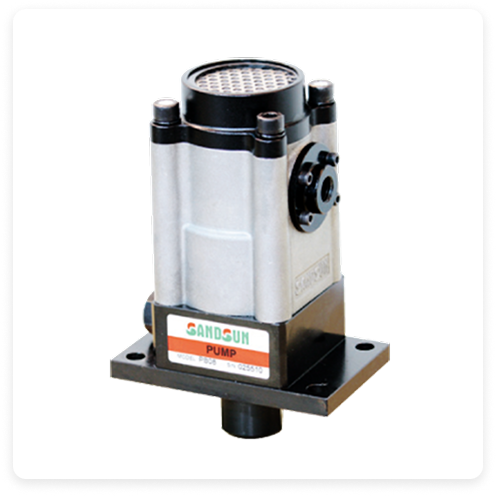

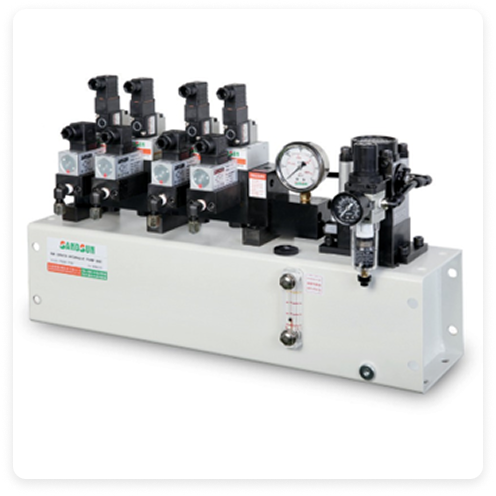

Air Driven Hydraulic Pump Unit

The hydraulic pump is driven by air. Once the outlet hydraulic pressure reaches the setting pressure, it will stop pumping which won't waste any energy. The pressure would be added automatically is the outlet pressure is reducing. It consists of the function to keep the pressure continuously.

Enquire Now

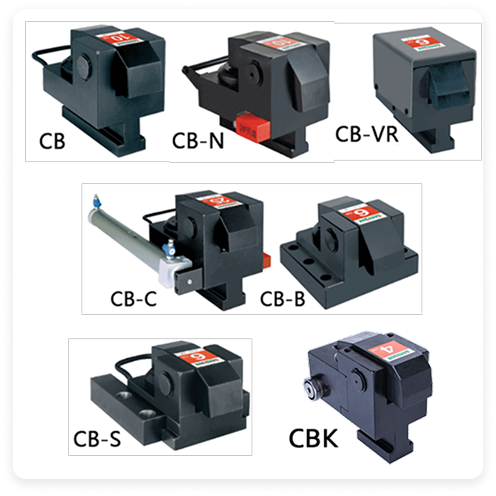

Clamp Selection

Better safety design clamp.
Clamp with built-in check valve that keeps the pressure itself.
The clamp will not release, even if the hydraulic tube is damaged.
Separate clamp body design for easy maintenance and replacement.
Waterproof design for cylinder and piston.

Enquire Now

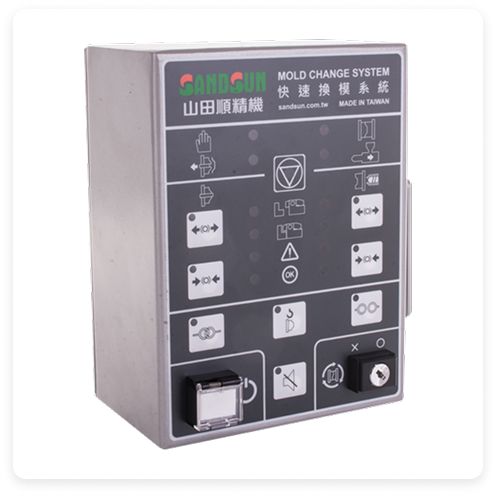

Control Operation Panel

Machine will be stopped automatically in case of operational errors.
Mold change for single side is functioned with two-way operation only for avoiding operational errors.
It is equipped with key switch to prevent operational errors.
During mold changing, it will check the following steps automatically: Injection unit backward, Ejector backward, Manual mode, and Mold close as signal requirement for unclamping. It can avoid operation errors and possible damages.
When changing molds or malfunction, it will send signals to stop machine opening/closing the mold.
